RRB series ribbon mixer
-
INTRO
-
SUBTYPE
-
DETAIL
-
RELATED
1、 Product overview
Xinruitu RB series mixer is the ideal equipment for solid-powder, powder-powder, powder-liquid and liquid-liquid mixing because of its novelty, high efficiency, energy saving, environmental protection and high mixing precision. Xinruitu RB series mixer is the ideal equipment for solid-powder, powder-powder, powder-liquid and liquid-liquid mixing because of its novelty, high efficiency, energy saving, environmental protection and high mixing precision.
2、Application industry
Typical applications are more than 30 industries. Food, pharmaceutical, feed, pesticide, petrochemical, chemical, fuel, spice and other industries.
3、Product characteristics
Working ability: 0.1~20m3, optional.
According to the process conditions, the design, configuration and manufacture of the continuous strip, interrupted, paddle, scraped wall, T-shaped and so on.
Heating and cooling jacket, U-shaped, round, horizontal cylinder, vacuum pressure spray, etc.
Seal: Filler PTFE, packing + labyrinth seal, labyrinth seal, mechanical seal, etc.
Manufactured materials: 304, 316L, 321, 317, etc. Stainless steel, composite steel, Q235, Q345, Q245R, etc.
Anticorrosion: It can be sprayed with Teflon, steel-lined PE, lined with PTFE, and sprayed with tungsten carbide.
Bearing: Japan NSK, Germany SKF, Kazakhstan shaft, tile shaft, Luo axis.
Motor reducer: Germany SEW, Siemens. Sumitomo, Guomao and other first-class configurations.
Drain valve: Pneumatic, electric, manual, knife gate valve, butterfly valve, ball valve, steering valve, etc.
Hygienic (GMP) standards, industrial production, anti-corrosion industry, laboratory, complete equipment design and manufacture
PRODUCT
1、产品概述
1、 Product overview
Xinruitu RB series mixer is the ideal equipment for solid-powder, powder-powder, powder-liquid and liquid-liquid mixing because of its novelty, high efficiency, energy saving, environmental protection and high mixing precision. Xinruitu RB series mixer is the ideal equipment for solid-powder, powder-powder, powder-liquid and liquid-liquid mixing because of its novelty, high efficiency, energy saving, environmental protection and high mixing precision.
2、Application industry
Typical applications are more than 30 industries. Food, pharmaceutical, feed, pesticide, petrochemical, chemical, fuel, spice and other industries.
3、Product characteristics
Working ability: 0.1~20m3, optional.
According to the process conditions, the design, configuration and manufacture of the continuous strip, interrupted, paddle, scraped wall, T-shaped and so on.
Heating and cooling jacket, U-shaped, round, horizontal cylinder, vacuum pressure spray, etc.
Seal: Filler PTFE, packing + labyrinth seal, labyrinth seal, mechanical seal, etc.
Manufactured materials: 304, 316L, 321, 317, etc. Stainless steel, composite steel, Q235, Q345, Q245R, etc.
Anticorrosion: It can be sprayed with Teflon, steel-lined PE, lined with PTFE, and sprayed with tungsten carbide.
Bearing: Japan NSK, Germany SKF, Kazakhstan shaft, tile shaft, Luo axis.
Motor reducer: Germany SEW, Siemens. Sumitomo, Guomao and other first-class configurations.
Drain valve: Pneumatic, electric, manual, knife gate valve, butterfly valve, ball valve, steering valve, etc.
Hygienic (GMP) standards, industrial production, anti-corrosion industry, laboratory, complete equipment design and manufacture
2、应用行业
3、产品特征
4、产品种类
catalog
-
1
RB sanitary grade (GMP) ribbon mixer
-
2
RB series industrial screw mixer
-
3
RB-based duty industrial use ribbon blender
- Volume: 0.1-20m3
- Apply to: pharmaceutical, food, additives, milk powder, condiments, cosmetics, etc.
- Volume: 0.1-20m3
- Application: Chemical, pesticide, plastic, rubber, metallurgy, mining, pigment insulation materials, etc.
- Volume: 0.1-20m3, part of the contact material is sprayed with tungsten carbide, PTFE, steel-lined PC, etc.
- Apply to: lithium batteries, environmental protection, pigments, pesticides. Pharmaceutical and other industries
- Volume: 0.1-10m3
- Apply to: Process conditions for powder mixing, drying, vacuum, and filtration under special conditions
- Application: Configurable operation platform, screw conveyor, silo, silo distributor, vacuum feeder, packaging machine, dust collector, liquid spraying system, automatic material selection system, automatic output Material system, powder metering system, electronic control PIC automatic control programming system, on-site installation and commissioning training one-stop service.
- Volume: 10 kg - 200 kg
- Apply to: colleges, working conditions, research institutes, biomedicine and other industries. Fixed, mobile.
- The RB Series ribbon mixers are available in multiple thread shapes. Specifically, it can be selected from the nature of the material and the location of the discharge.
- For materials with high viscosity and poor flow performance, the scraping device can be added on the basis of the original screw. The PTFE plate scrapes the wall of the tube in the circumferential direction to solve the problems of adhesion, agglomeration and blockage of the inner wall remelting material, and improves the efficiency of subsequent operations.
-

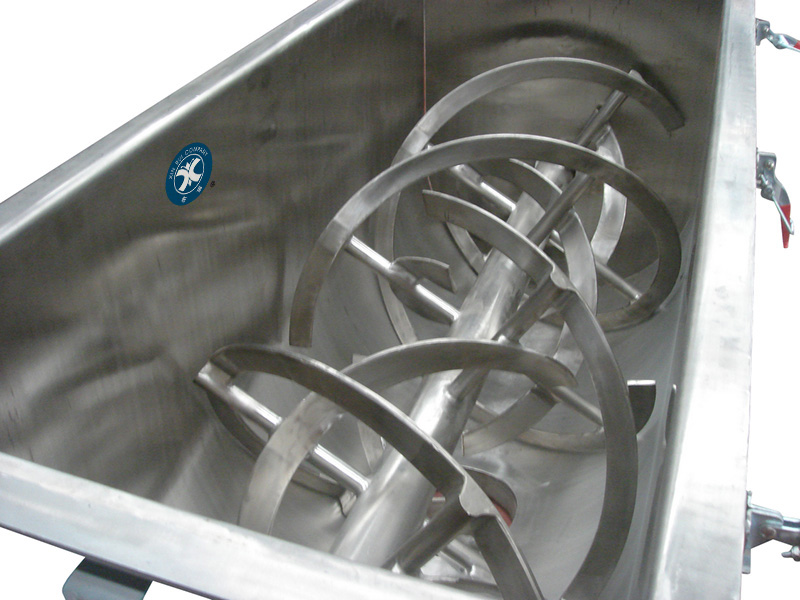

RB continuous strip (bottom center discharge)
This design of the thread can quickly achieve a homogeneous mixing effect. The outer thread rod pushes the material to the center position, and the inner screw rod pushes the material to both ends, rotating clockwise or counterclockwise to make the material move radially, opening the bottom center discharge valve, and unloading the material very quickly. material.
-
RB continuous thread (bottom discharge)
A continuous strip for one or two discharges at the bottom that can be discharged at the bottom left or bottom right of the barrel. The outer strip pushes the material to the bottom of the discharge, and the inner strip can also push the material to the bottom of the discharge, which causes the material to move radially.
-
RB broken type screw (bottom center discharge)
The material moves in the same way as the continuous spiral strip, and is widely used for uniform mixing of high-density, multi-powder, and large-area materials.
-
RB paddle blade
This hybrid design is an excellent choice when the machine is used for incomplete or complete batch operation, and the most efficient mixing results are obtained with minimal load.
-
RB scraper type V-shaped thread
Suitable for mixing materials that require scraping.
-
T-shaped strip
The RB T-shaped strip is suitable for mild materials and does not overheat the heat sensitive material.
RB ribbon mixer technical parameter table
- Description:
- 1. The table is the reference size of the shape 1. The length or height of other models is used for elongation reference on this basis.
- 2. The load power varies with the material characteristics. The power in the above table is calculated based on the material with a specific gravity of 512kg/m3 and no fluidity. The maximum weight of the equipment loading material (kg) = working volume (m3) × 512kg / m3.
- 3, standard models without jacket, no liquid spray device, if necessary, must be specified when ordering.
- 4. The above parameters are for reference only, and are designed and manufactured according to the process requirements and material properties.
Schematic diagram of the discharge valve of RB ribbon mixer
-
Embedded valve -
Ball valve -
Knife gate valve -
Standard pulley valve
Schematic diagram of the sealing box of RB ribbon mixer
-
Standard type -
Air or liquid sealed -
Hygienic type
Product introduction
The RH series spiral cone mixer designed and manufactured by Xinruituo Company is divided into two categories: RH-A type and RH-B type. Stainless steel such as carbon steel, SUS304, SUS304L, SUS316L, and SUS307 is optional.
Due to the trend of the internationally popular ribbon blender gradually replacing the cone mixer, a considerable part of the process conditions require a conical mixer for product mixing, focusing on the RH type asymmetric double screw mixer.
Supply Shanghai Xinruidu mixer, more about Shanghai Xinruidu mixer technical information, welcome to inquire.RH-A type outline drawing
Main technical parameter list
Main installation size
Description
The ES screw conveyor consists mainly of a housing, a built-in spindle and a spiral. When the spiral piece rotates, the material moves from the feeding port to the discharging port, and at the same time, the material mixes and stirs. Generally suitable for dip conveying, horizontal conveying can also be designed.
Scope of application
The ES series screw conveyor is safe and reliable for conveying flying powder, toxic, turbid, flammable and explosive materials, and meets the environmental requirements of pollution-free. However, due to the small effective circulation area in the machine body, the screw conveyor is not suitable for conveying materials that are easily deteriorated, too sticky, and easy to agglomerate, and its use effect is similar to that of a high shear emulsifier.
Shape
Technical parameters of conveying materials as cement
Note: 1. The conveying capacity in the table is calculated according to the conveying material as cement (bulk density ρ=1.2t/m3) and the conveying inclination angle is 35°-45°.
2. The motor power in the table is determined according to the conveying length, angle, and material properties.
Note: 1. The conveying capacity in the table is calculated according to the conveying material as fly ash (stacking density ρ=0.7t/m3) and the conveying inclination angle is 35°-45°.
2. The motor power in the table is determined according to the conveying length, angle, and material properties.
Note: 1. The conveying capacity in the table is calculated according to the conveying material as dry sand (bulk density ρ=1.4t/m3) and the conveying inclination angle is 10°-15°.
2, dry sand according to particle size can be divided into fine (particle size 0.6mm or less), medium (particle size 0.6-2.5mm), coarse (particle size 2.5-5mm) three categories. If the conveying granules are coarse sand larger than 2.5 mm, please specify when ordering.
3. The motor power in the table is determined according to the conveying length, angle, and material properties.
